SC SeriesLegacy Series
AI/SL/IoT SeriesAdvanced Imaging / Star-light / Internet of Things Series
AT SeriesAutomotive Series
GS/LA SeriesGlobal Shutter / Linear Series
CS/HS/XS SeriesSmartphone Series
PC SeriesPersonal Computer Series
XS Series HS Series CS Series
Series products to meet different performance requirements

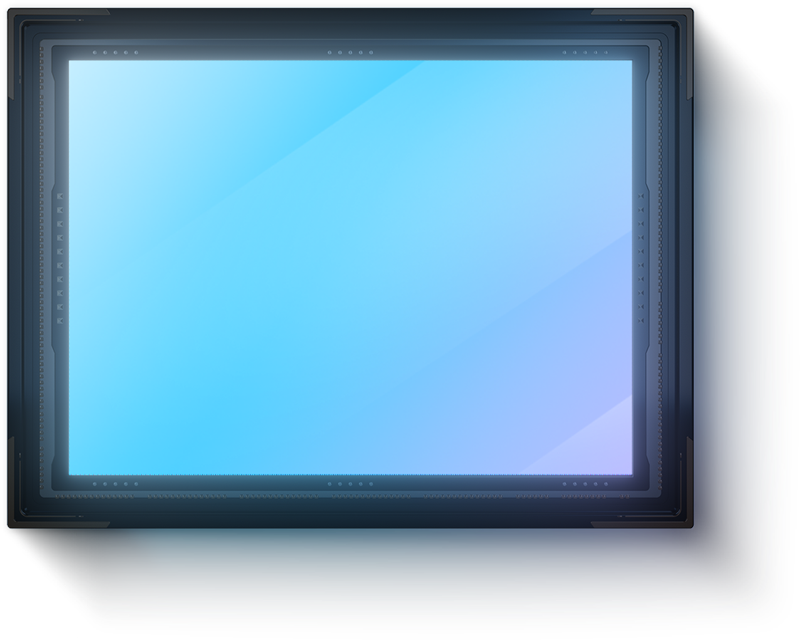

Complete CIS solutions for smartphone cameras
Complete CIS solutions for smartphone cameras
Advanced imaging technology
Excellent image quality
Serialized products
Excellent Night Imaging
Every Night Moment Shines
Shot on SC5A5XS, Shanghai
SC595XS
Competitor Similar Products
Read Noise Reduce
(e-)
SC595XS
Competitor Similar Products
Dynamic Range Promote
(dB)

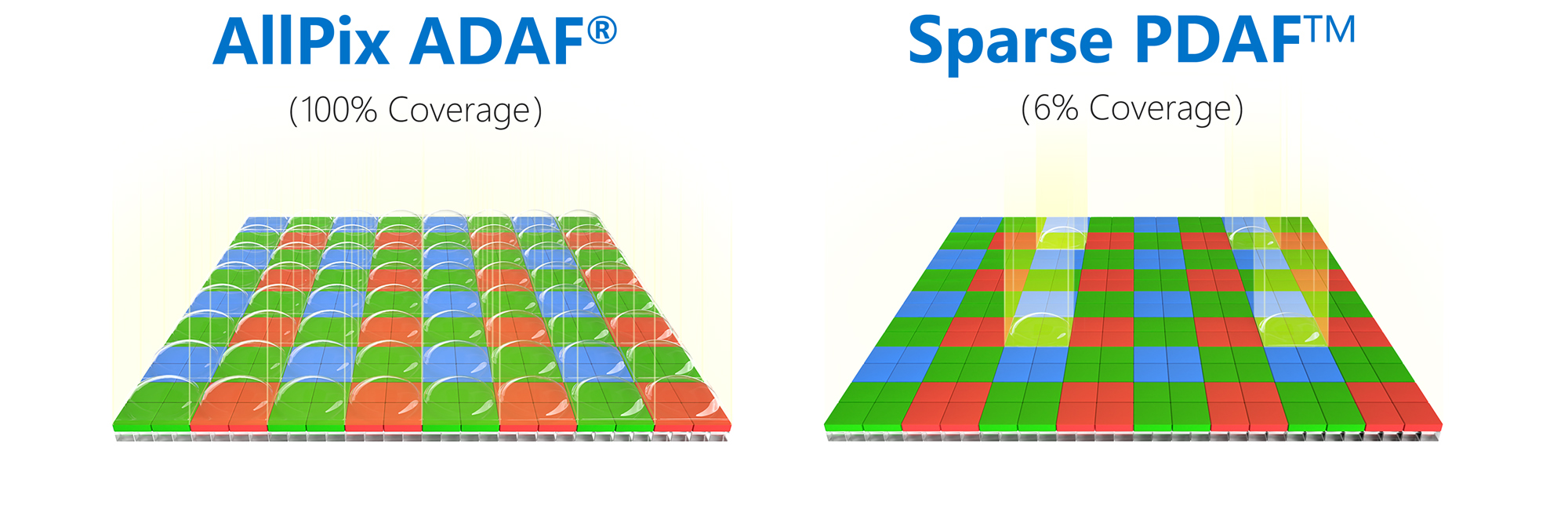

Autofocus Technologies for Cellphone CIS
XS Series
| Product Series | PN | Select Resolution | Select Optical Format | Pixel Size | Select Shutter Type | Select whether to have HDR | Pixel Array | Max Frame Rate | CRA | Interface | Package | Download | Contact Us |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SmartClarity®-SL Pro | NewSCC80XS | 200MP | 1/1.28" | 0.61μm | Rolling | Yes | 16384Hx12288V | 10fps | 20.8° | MIPI | COB/RW | - | Contact Sales |
| SmartClarity®-SL Pro | NewSC535XS | 50MP | 1/2.5" | 0.7μm | Rolling | Yes | 8224Hx6176V | 25fps | 17.86° | MIPI | COB/RW | - | Contact Sales |
| SmartClarity®-XL Pro | NewSC5A5XS | 50MP | 1" | 1.6μm | Rolling | Yes | 8192Hx6144V | 30fps | 36.7° | MIPI | COB/RW | - | Contact Sales |
| SmartClarity®-XL Pro | NewSC595XS | 50MP | 1/1.28" | 1.22μm | Rolling | Yes | 8192Hx6144V | 30fps | 36.9° | MIPI | COB/RW | - | Contact Sales |
| SmartClarity®-XL Pro | SC585XS | 50MP | 1/1.28” | 1.22μm | Rolling | Yes | 8192Hx6144V | 23fps | 36.9° | MIPI | COB/RW |  | Contact Sales |
| SmartClarity®-2 | SC520XS | 52MP | 1/2.42" | 0.7μm | Rolling | Yes | 8784Hx6064V | 15fps | Tele:17.9° Wide:35.3° | MIPI | COB/RW | | Contact Sales |
HS Series
| Product Series | PN | Select Resolution | Select Optical Format | Pixel Size | Select Shutter Type | Select whether to have HDR | Pixel Array | Max Frame Rate | CRA | Interface | Package | Download | Contact Us |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SmartClarity®-SL | NewSC512HS | 50MP | 1/2.76" | 0.64μm | Rolling | Yes | 8224Hx6176V | 15fps | 33.75° | MIPI | COB/RW | - | Contact Sales |
| SmartClarity®-XL | NewSC562HS | 50MP | 1/1.55" | 1μm | Rolling | Yes | 8192Hx6144V | 15fps | 36.1° | MIPI | COB/RW | | Contact Sales |
| SmartClarity®-SL | NewSC532HS | 50MP | 1/2" | 0.8μm | Rolling | Yes | 8192Hx6144V | 15fps | 35.14° | MIPI | COB/RW | | Contact Sales |
| SmartClarity®-XL | NewSC130HS | 13MP | 1/3.06" | 1.116μm | Rolling | Yes | 4208Hx3120V | 60fps | 33.69° | MIPI | COB/RW | | Contact Sales |
| SmartClarity®-XL | SC140HS | 14MP | 1/2.64" | 1.224μm | Rolling | Yes | 4576H×3168V | 30fps | 35.77° | MIPI | COB/RW | - | Contact Sales |
CS Series
| Product Series | PN | Select Resolution | Select Optical Format | Pixel Size | Select Shutter Type | Select whether to have HDR | Pixel Array | Max Frame Rate | CRA | Interface | Package | Download | Contact Us |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SmartClarity®-3 | NewSC1620CS | 16MP | 1/3.09" | 1.0μm | Rolling | 4672Hx3512V | 60fps | 34° | MIPI | COB/RW | | Contact Sales | |
| SmartClarity®-3 | NewSC5000CS | 50MP | 1/2.5'' | 0.702μm | Rolling | Yes | 8224Hx6176V | 15fps | 35.7° | MIPI | COB/RW | - | Contact Sales |
| DSI-2 | SC080CS | QVGA | 1/20" | 2.24μm | Rolling | 248Hx328V | 30fps | 16.68° | SPI | CSP9 | | Contact Sales | |
| SmartClarity®-3 | SC202CS | 2MP | 1/5.1" | 1.75μm | Rolling | 1608Hx1208V | 30fps | 30.76° | MIPI | CSP/COB/RW | - | Contact Sales | |
| DSI-2 | SC201CS | 2MP | 1/5.1" | 1.75μm | Rolling | 1608Hx1208V | 30fps | 31.5° | MIPI | CSP/COB/RW | | Contact Sales | |
| SmartClarity®-3 | SC521CS | 5MP | 1/5" | 1.12μm | Rolling | 2600Hx1952V | 30fps | 31.9° | MIPI | COB/RW | - | Contact Sales | |
| SmartClarity®-2 | SC501CS | 5MP | 1/5" | 1.12μm | Rolling | 2600Hx1952V | 30fps | 31.87° | MIPI | COB/RW | | Contact Sales | |
| SmartClarity®-2 | SC520CS | 5MP | 1/5" | 1.12μm | Rolling | 2600Hx1960V | 30fps | 31.9° | MIPI | CSP/COB/RW | | Contact Sales | |
| SmartClarity®-2 | SC820CS | 8MP | 1/4" | 1.12μm | Rolling | 3280Hx2464V | 30fps | 32.55° | MIPI | COB/RW | | Contact Sales | |
| SmartClarity®-3 | SC1320CS | 13MP | 1/3.06" | 1.12μm | Rolling | 4224Hx3134V | 30fps | 33.69° | MIPI | COB/RW | | Contact Sales | |
| SmartClarity®-2 | SC1600CS | 16MP | 1/3.06" | 1.0μm | Rolling | 4656Hx3096V | 60fps | 33.98° | MIPI | COB/RW | | Contact Sales |
